POWERHOUSE Diesel Silent Type Generator with Battery for Electric Start 8.5KW •BUILDMATE• PHI
. Learn More.POWERHOUSE Diesel Silent Type Generator with Battery for Electric Start Max Power 8.5KW 100% COPPER •BUILDMATE• PHI
►1PC PER ORDER

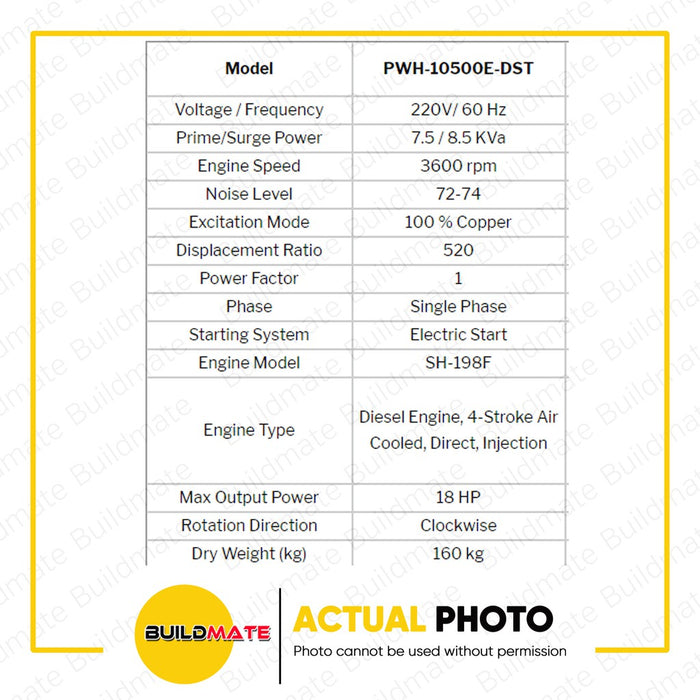

SPECIFICATIONS:
►Voltage / Frequency: 220V/ 60 Hz
►Prime/Surge Power: 7.5 / 8.5 KVa
►Engine Speed: 3600 rpm
►Noise Level: 72-74
►Excitation Mode: 100% Copper
►Displacement Ratio: 520
►Power Factor: 1
►Phase: Single Phase
►Starting System: Electric Start
►Engine Model: SH-198F
►Engine Type: Diesel Engine, 4-Stroke Air Cooled, Direct, Injection
►Max Output Power: 18 HP
►Rotation Direction: Clockwise
►Dry Weight (kg): 160 kg
►Decibels - 72DB
►Max KVA( Wattage) - 8000 KVA
**IMPORTANT TIPS FOR PH-10500E DST Diesel Generator
PAGBUKAS
*Connect the battery before starting
*Turn off the circuit breaker
*Fill/check the engine oil
-10W to 30W
-1.5 Liters dapat hindi po bababa ng 1.5
*Fill/check the fuel
-23 Liters Full Tank
*Pull the speed control lever to "Run"
*Turn the Electric Start ket to "Start"
*Insert the plug
*Turn on the circuit breaker (NOTE: make sure na wala pa pong load ang generator habang ginagawa ang prosesong ito)
KAALAMAN
"Regular checking of oil is a MUST (At lease before use check the oil)
*1st 20 hrs of use change oil
*100 hrs of use change oil
*Every 300 hrs of use change oil
*Max hour of use are 4-5 hours then let the generator rest for 2 hours before using again
*Be sure to stop the engine and let it cool down when adding fuel. Fuel spilt on hot engine parts could ignite.
*Do not operate the machine indoor or in poor ventilated places.
NOTE: Pag papatayin na ang generator unahing patayin ang Circuit Breaker bago ang makina
***Importanteng patayin rin ang breaker kada papatayin ang makina ng generator dahil pag hindi pinatay ang breaker at biglang nag start na agad ang makina may tendency na magkaroon ng short circuit na nagiging reason ng pagkasira ng makina nito.
SPECIFICATION
