BUILDMATE Powerhouse Electric Automatic Voltage Regulator 2KVA | 3KVA | 5KVA | 10KVA SERVO MOTOR PHE
BUILDMATE Powerhouse Electric Automatic Voltage Regulator 2KVA | 3KVA | 5KVA | 10KVA SERVO MOTOR Control Power Supply with Outlet • PHE
AVAILABLE IN:
►2KVA
►3KVA
►5KVA
►10KVA
SPECIFICATIONS:

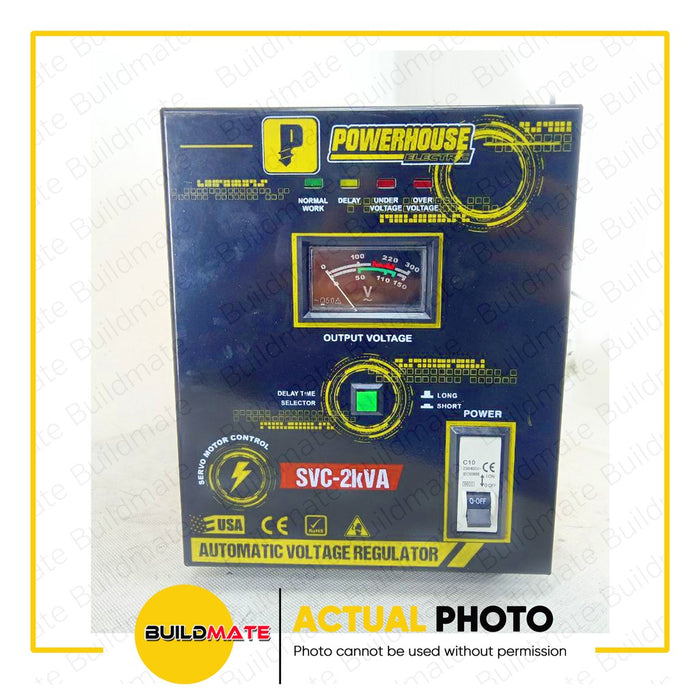

►Model: SVC-2KVA
►Range of Input Voltage: 160-250V or 70-130V
►Output Voltage: 230V or 110V
►Frequency: 50Hz/60Hz
►Waveform distortion: No additional waveform distortion
►Load power factor: 0.8
►Efficiency: 90%
►Ingress protection: IP20
►Insulation and thermal endurance class: Class B
►Electrical Strength: No flashover or breakdown when 2000V/min
SPECIFICATIONS:

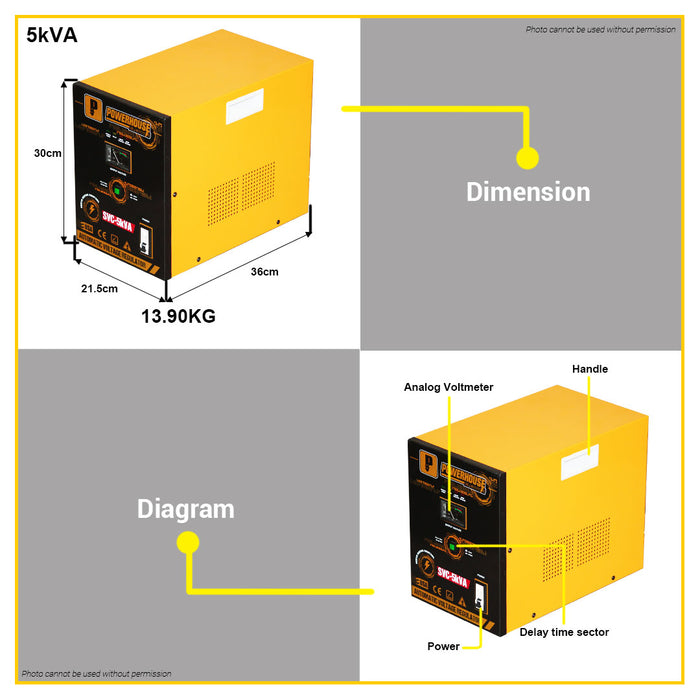

►Model: SVC-5KVA
►Range of Input Voltage: 160-250 V
►Output Voltage: 220-230 V
►Accuracy of Voltage Stabilization: ≤ ± 4%
►Over-voltage protection value: Phase voltage 257 ± 4 V
►Under-voltage protection value: Phase voltage 195 ± 4 V
►Frequency: 50/60 Hz
►Waveform distortion: No additional waveform distortion
►Load power factor: 0.8
►Efficiency: ≥ 90%
►Adjustable time: < 1.5s (when input voltage has a change of 10%)
►Delay time: long time delay is 5 ± 2 min; short time delay is 5 ± 2 seconds
►Ingress protection of enclosure: IP20
►Insulation and thermal endurance class: Class B
SPECIFICATIONS:
►Model: SVC-10KVA
►Range of Input Voltage: 160-250 V
►Output Voltage: 220-230 V
►Accuracy of Voltage Stabilization: ≤ ± 4%
►Over-voltage protection value: Phase voltage 257 ± 4 V
►Under-voltage protection value: Phase voltage 195 ± 4 V
►Frequency: 50/60 Hz
►Waveform distortion: No additional waveform distortion
►Load power factor: 0.8
►Efficiency: ≥ 90%
►Adjustable time: < 1.5s (when input voltage has a change of 10%)
►Delay time: long time delay is 5 ± 2 min; short time delay is 5 ± 2 seconds
►Ingress protection of enclosure: IP20
►Insulation and thermal endurance class: Class B

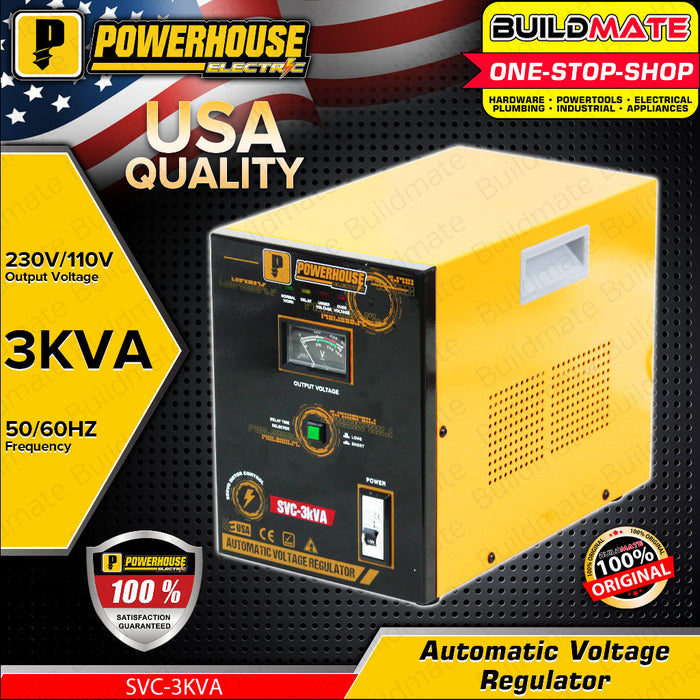

►Model: PH-SVC-3KVA
►Range of Input Voltage: 160~250V or 70~130V
►Output Voltage: 230V or 110V
►Accuracy of Voltage Stabilization: ≤ ± 4%
►Over-Voltage Protection Value: Phase Voltage 257 ± 4V
►Under-Voltage Protection Value: Phase Voltage 195 ± 4V
►Frequency: 50Hz/60Hz
►Waveform Distortion: No additional wave distortion
►Load Power Factor: 0.8
►Efficiency: 90%
►Adjustable Time: <1.5s (when input voltage has a change of 10%)
►Delay Time:
-- Long time delay: 5 ± 2mins; Short time delay: 5 ± 2s
-- Usually, under-voltage protection is not provided, but it can be set at request
►Ingress Protection of Enclosure: IP20
►Insulation and Thermal Endurance Class: Class B
►Electrical Strength: No flashover or breakdown when at 2000V/min
►Insulation Resistance: ≥ 5M
FEATURES:
►Full-automatic AC voltage stabilizers is our leading product, it is composed of contact type voltage regulator, servomotor and automatic control circuit.
►This series of voltage stabilizers possesses visible advantages such as elegant appearance, compact design, light weight.
