Powerhouse 250A BX8-250 EVOLUTION AC ARC STAINLESS Body Welding Machine •BUILDMATE• PHWM

Sold out
Original price ₱6,875.00
Original price ₱6,875.00 - Original price ₱6,875.00
Original price ₱6,875.00
Current price ₱6,683.00
₱6,683.00 - ₱6,683.00
Current price ₱6,683.00

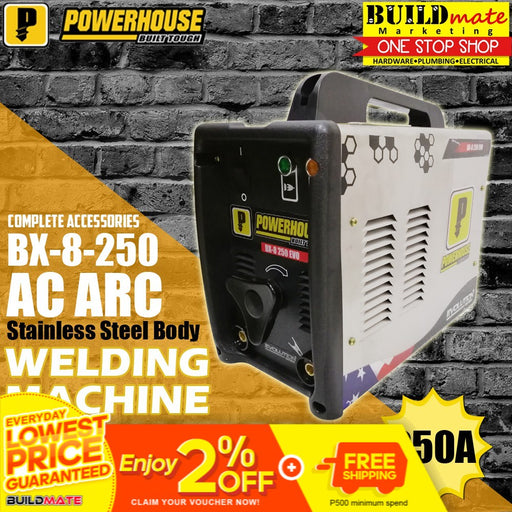

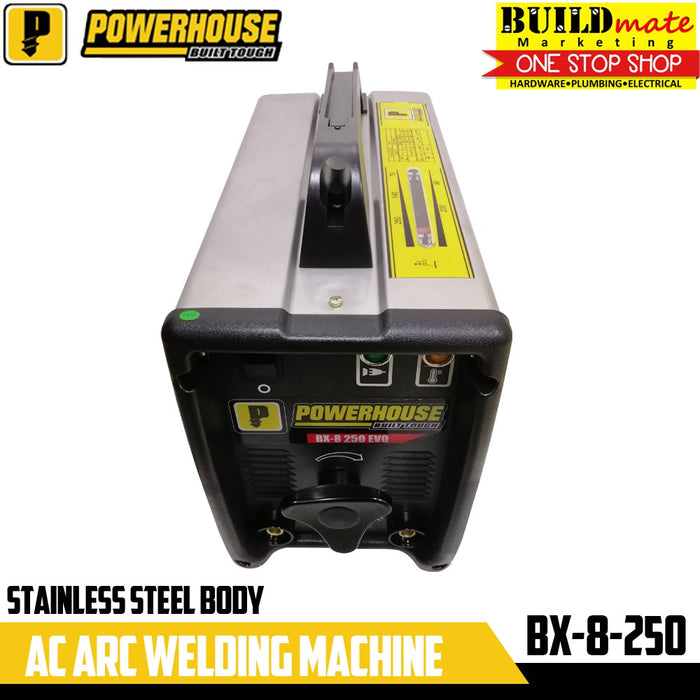

Powerhouse 250A BX-8250 EVOLUTION AC ARC STAINLESS Body Welding Machine •BUILDMATE•
SPECIFICATIONS:
►Rated Input Voltage: 220V
►Frequency: 60hz
►Number of phase: 1ph
►Rated Input Current: 42A
►Air Switch: 30A
►Fuse: 20A
►Power Cable: 2.5mm2
►Rated input capacitance: 9.3 KVA
►Rated No-Load Voltage: 47~50V
►Current Range: 75~250A
►Rated Output voltage: 30V
►Rated duty Cycle: 20%
►Welding current:
10min 20% - 250A
10min 60% - 144A
10min 100% - 112A
►Dimensions: 23 x 50.5 x 35
►Weight: 19.4kg
FEATURES:
►Insulation grade: H
►Case protection grade: IP12S
►Cooling type: Fan cooled

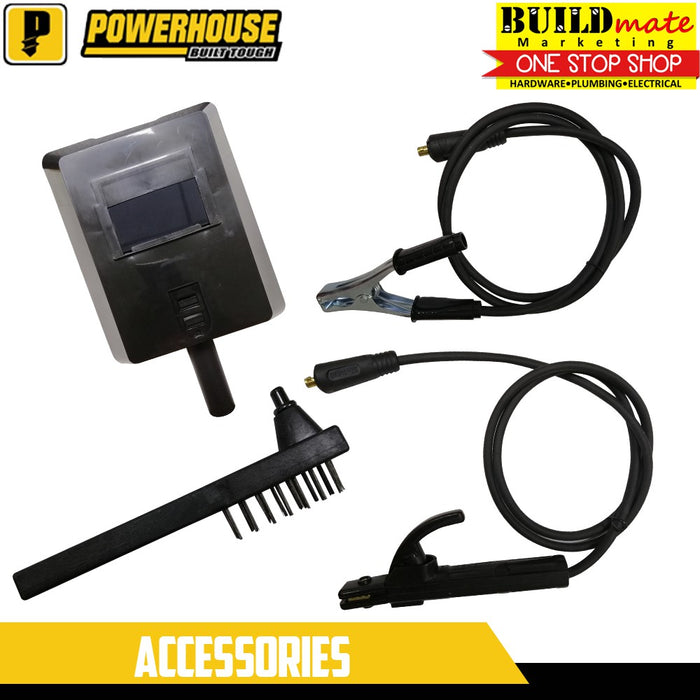

INCLUSIONS:
►Manual
►handhold mask
►Slag removing brush
►Earth Cable (with clamp)
►Welding cable(fixed with electrode holder)
