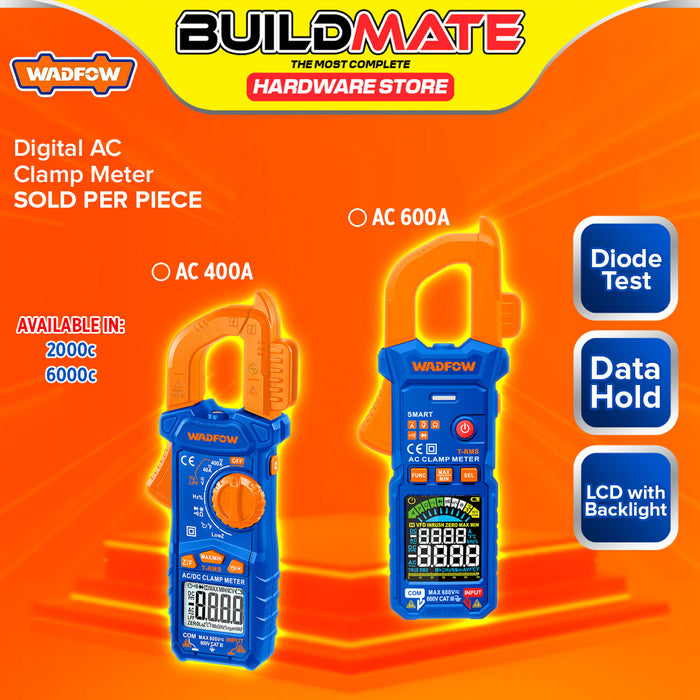

BUILDMATE Wadfow Digital AC Clamp Meter 400V / 600V AC/DC Voltage Measurement Electrical Diode Tester LCD Display with Backlight - WPT

BUILDMATE Wadfow Digital AC Clamp Meter 400V / 600V AC/DC Voltage Measurement Electrical Diode Tester LCD Display with Backlight - WPT

AVAILABLE IN:
►AC 600A - WDM6505
►AC 400A - WDM6503

SPECIFICATION:

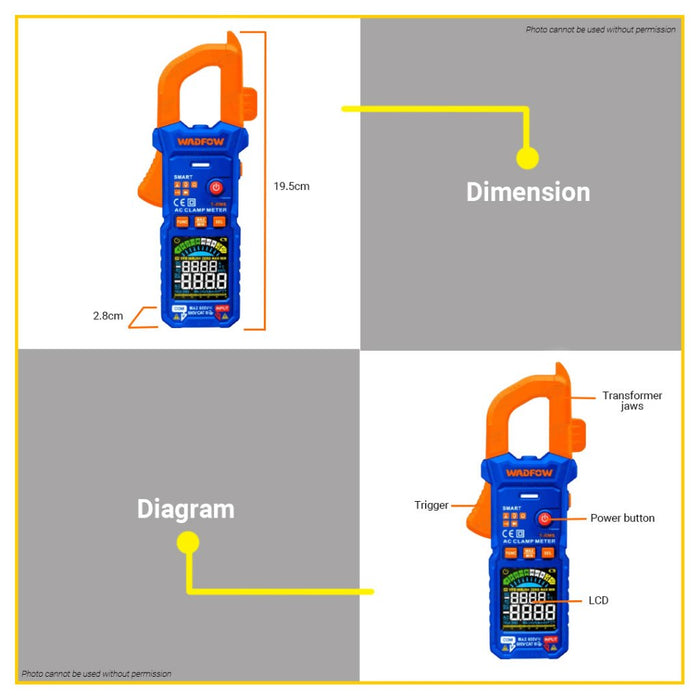

►Model: WDM6505
►Display:6000 counts
►DC/AC Voltage: 600mV/6V/60V/600V
►AC Current: 6A/60A/600A
►Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
►Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF
►Temperature: -20℃ to 1000℃

FEATURES:
►Smart Function: Automatically detects and selects measurement modes
►Non-Contact Voltage Detection (NCV): Detects the presence of AC voltage
►Frequency Test: Measures the frequency of AC signals
►Diode Test: Checks the functionality of diodes
►Data Hold: Freezes the current measurement on the display
►Backlight: Illuminates the display for better readability in low light
►Flashlight: Provides additional lighting in dark environments
►Low Power Off: Automatically turns off to save battery when power is low

SPECIFICATION:

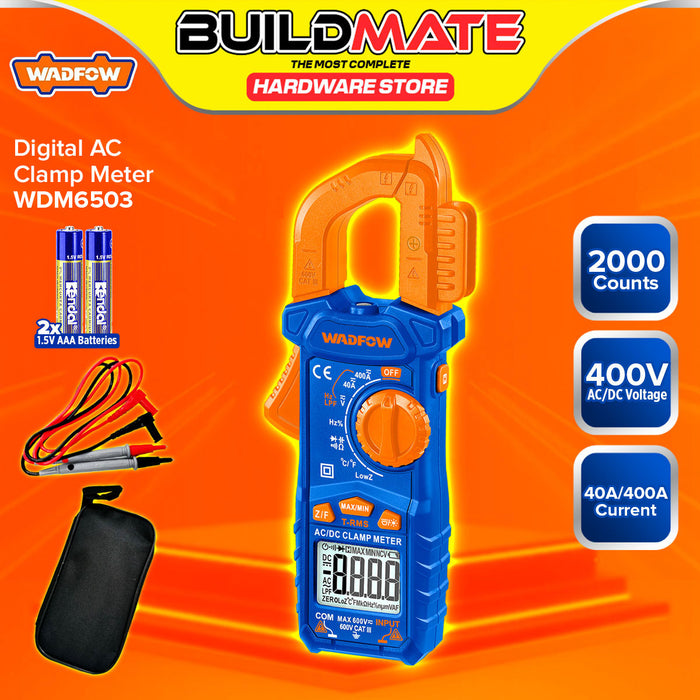

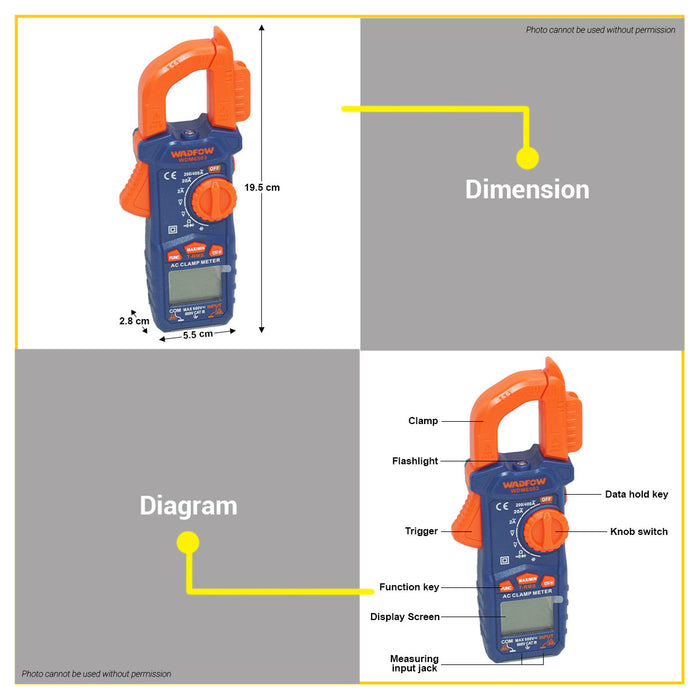

►Model: WDM6503
►Display :2000 counts
►AC Current: 40A/400A
►AC Voltage:2V/20V/200V/400V
►DC Voltage:200mV/2V/20V/200V/400V
►Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
►Capacitance:4nf/40nf/400nf/4μF/40μF/400μF/4mf
►With 2pcs LR03 AAA batteries

FEATURES:
►LCD with Backlight: Illuminates the display for better readability in low light
►Diode Test: Checks the functionality of diodes
►Data Hold: Freezes the current measurement on the display
►Low Battery Indication: Alerts when the battery is low
►Auto Power Off: Automatically turns off to save battery when not in use
►Flashlight Function: Provides additional lighting in dark environments
