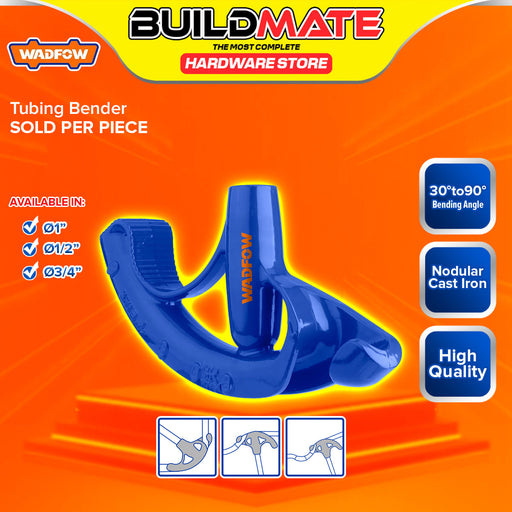

BUILDMATE Wadfow Tubing Bender 13mm-25mm Portable Nodular Cast Iron Manual Hand Pipe Bending Tube Forming Tool SOLD PER PIECE - WHT

BUILDMATE Wadfow Tubing Bender 13mm-25mm Portable Nodular Cast Iron Manual Hand  Pipe Bending Tube Forming Tool SOLD PER PIECE - WHT

AVAILABLE IN:
►1"
►1/2"
►3/4"

SPECIFICATION:
►Model: WTB0101
►Bendable Pipe Diameter: φ1" (25mm)
►Material: Nodular Cast Iron
►Bend Radius: 165mm
►Handle Diameter: 35mm
►Bending Angle: 30° to 90°

SPECIFICATION:
►Model: WTB0112
►Bendable Pipe Diameter: φ1/2" (13mm)
►Material: Nodular Cast Iron
►Bend Radius: 100mm
►Handle Diameter: 27mm
►Bending Angle: 30° to 90°

SPECIFICATION:
►Model: WTB0134
►Bendable Pipe Diameter: φ3/4" (19mm)
►Material: Nodular Cast Iron
►Bend Radius: 127mm
►Handle Diameter: 35mm
►Bending Angle: 30° to 90°

FEATURES:
►Tubing benders typically consist of a sturdy frame or base with a bending mechanism. The bending mechanism may include a lever arm or hydraulic system that exerts force on the tube to bend it around a die or form.
►The bending mechanism of the tubing bender is designed to work with specific dies or forms that determine the radius and angle of the bend. Different dies or forms can be used to achieve different bend angles and radii.
►Tubing benders may be operated manually, where the user applies force to the lever arm to bend the tube, or they may be powered by hydraulic or electric motors for increased efficiency and precision.
►Tubing benders are designed to bend tubes to specific radii without deforming or flattening the tube. The bend radius is determined by the size and shape of the die or form used in the bender.
►Tubing benders can typically bend tubes to a range of angles, from slight bends to sharp angles, depending on the design of the bending mechanism and the dies or forms used.
