BUILDMATE Phelps Dodge THHN THWN-2 Electric Wire 2.0mm² / 3.5mm² Stranded Copper Building Wire Cable Flame Retardant PVC Nylon

BUILDMATE Phelps Dodge THHN THWN-2 Electric Wire 2.0mm² / 3.5mm² Stranded Copper Building Wire Cable Flame Retardant PVC Nylon

AVAILABLE IN:
Black
Blue
Red
Yellow

SPECIFICATION:

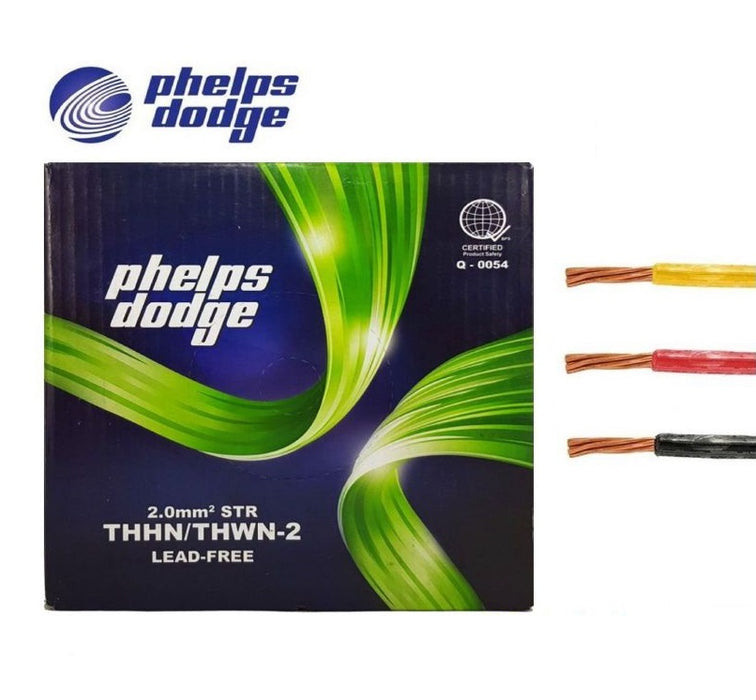

2.0mm² STR THHN/THWN-2 Wire
Available Colors: Black, Red, Yellow
Length per Roll: 75 meters
Stacking Limit: Up to 18 rolls
Conductor: Manufactured from pure soft virgin copper, ensuring 100% conductivity
Stranding Type: Compressed for enhanced strength and flexibility

Insulation:
Made from lead-free PVC
Flame retardant
Resistant to heat, moisture, gasoline, and oil (classified as Oil and Gasoline Resistant II)

Nylon Jacket:
Resists oil, chemicals, and abrasion
Durable and designed for easy pulling through conduits

Standards and Certifications:
Exceeds PNS 35 and UL83
Complies with the Philippine Electrical Code

Applications:
Dual-rated for wet and dry environments at up to 90°C
Suitable for operations up to 600 volts

Ampacity:
35 amperes in open air
25 amperes in conduit or raceway

Conduit Capacity:
Maximum of 11 conductors in a 15mm PVC conduit

__________________

SPECIFICATION:

3.5mm² STR THHN/THWN-2 Wire

Available Colors: Black, Blue, Red

Length per Roll: 75 meters
Stacking Limit: Up to 18 rolls
Conductor: Crafted from pure soft virgin copper for 100% conductivity
Stranding Type: Compressed, providing structural integrity and flexibility

Insulation:
Lead-free PVC insulation
Flame retardant
Resistant to heat, moisture, gasoline, and oil (Oil and Gasoline Resistant II)

Nylon Jacket:
Oil, chemical, and abrasion resistant
Tough exterior that pulls easily through conduits
Standards and Certifications:
Exceeds PNS 35 and UL83
Meets the Philippine Electrical Code requirements

Applications:
Rated for use in both wet and dry locations up to 90°C
Suitable for electrical systems up to 600 volts

Ampacity:
40 amperes in air
30 amperes in raceway

Conduit Capacity:
Maximum of 9 conductors in a 15mm PVC conduit
