BUILDMATE Wadfow RCD/LOOP Tester Detector Portable Digital Leakage Phase Check Tool WDM9506 • WPT

Description

BUILDMATE Wadfow RCD/LOOP Tester Detector Portable Digital Leakage Current Insulation Ground Phase Check Tool WDM9506 • WPT

SPECIFICATIONS:
►Model: WDM9506
►Tripping Time:
- *1 |△N300 (Slow 500ms)
- *5 |△N40ms (Slow 150ms)
►Tripping Current: (0.2-1.1) |△N
►Contact Voltage: 0~99.9V
►Alternating Voltage: 0~440V
►Frequency: DC, 45~65Hz
►Loop Resistance: 0.1~2000Ω
►RL Current Test: 0.51|△N
►Multiplying Power of Measuring Current: *0.5, *1, *5
►Current Level (|△N): 10mA, 30mA, 100mA, 300mA, 500mA
►Trigger Phase Angle: 0 or 180
►With 6pcs 1.5 AA Batteries
►Auto Power Off
►Backlight
►USB 2.0 Interface

FEATURES:
►Jump-off current measurement
►Jump-off time measurement
►Contact Voltage Measurement
►Loop Resistance Measurement

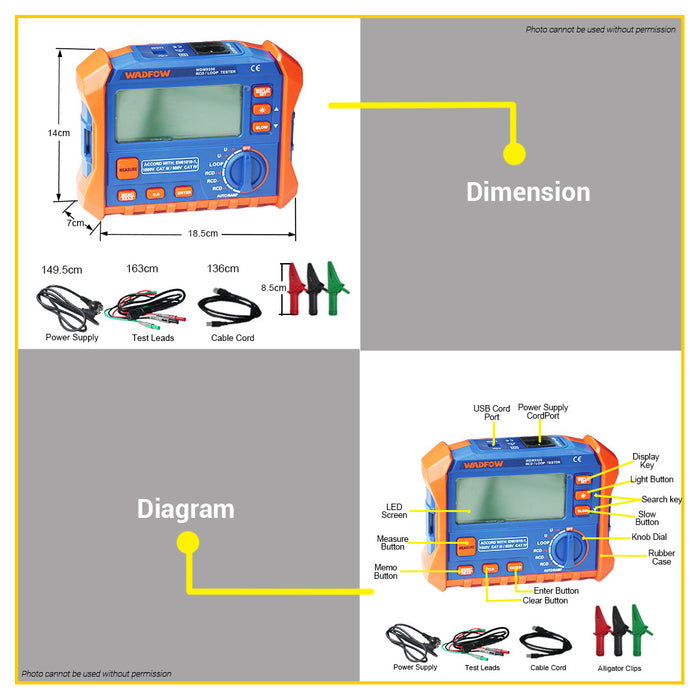

►This RCD/LOOP Tester incorporates the latest technology into a compact, rugged, easy to use and portable.
►Can measure the switch leakage, trip, current, trip time, loop resistance, and on-line voltage.

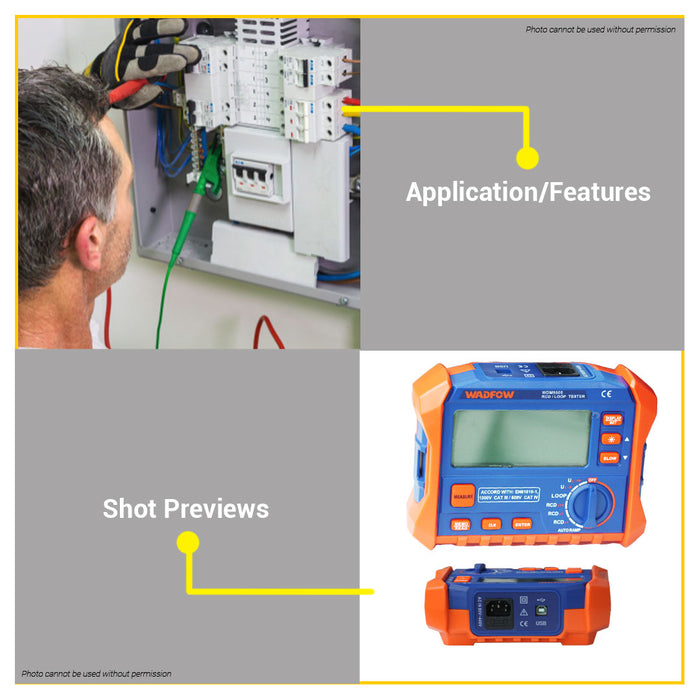

►It is an ideal tool for electricians to do testing, inspection and repair.
